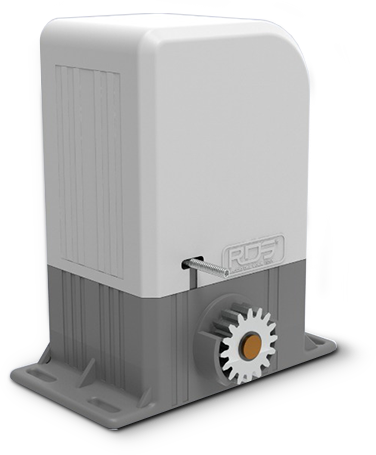

RDS-5
Electric Sliding Auto Gate System

RDS 5 is a sliding autogate opener under the Raggio Del Sole series that is suitable for both residential and light industrial use. This automatic sliding gate system uses DC features with built-in limit switch to operate the motor and control board as well as to conduct mechanical adjustments. Equipped with high-quality material and oil bath lubrication technology, RDS 5 automatic sliding gate system provides a reliable, efficient and safe solution to operating sliding gates.

High Quality Stainless Steel

Solid and Long Lasting

Sliding autgate systems are the perfect solution if space is limited as they can be installed at any angle and take up less space. Being made from high-quality stainless steel, our RDS-5 system can guarantee that your automatic sliding gate system will last you for a long time.

3-Speed Concept

Using "Slow-Fast-Slow" 3 speed concept control panel to ensure stable operation & prevent power leaking.

Oil Bath Lubrication Technology

RDS 5 is specially implementing the heat-proof oil lubricants technology applied in motor gearbox, allows the motor to withstand the motor functioning in average temperature and prevents motors from overheating.

Power Backup System

Standby power up to 48 hours without any AC electricity incoming.

Durable

With Italian Technology and other quality attributes, it is powerful, reliable, safe and flood-resistant.

Heat Proof

Heat-proof grease are specially applied on DC mini motors to prevent motors from overheating. With Oil Bath Technology, it acts as lubrication, rust protection and increase lifespan of inner parts of the motor.

Premium Quality

Premium Quality

Premium Quality

The combinations of ABS PVC and high-quality steel materials allows RDS 5 to maximize its sustainability of usage durability. Lifespan can be 8 years or more.

Eco Save

Eco Save

Eco Save

Designed with DC (direct current) automatic-based system, which saves up to 90% of your electricity usage

Easy Installation and Maintenance

Easy Installation and Maintenance

Easy Installation and Maintenance

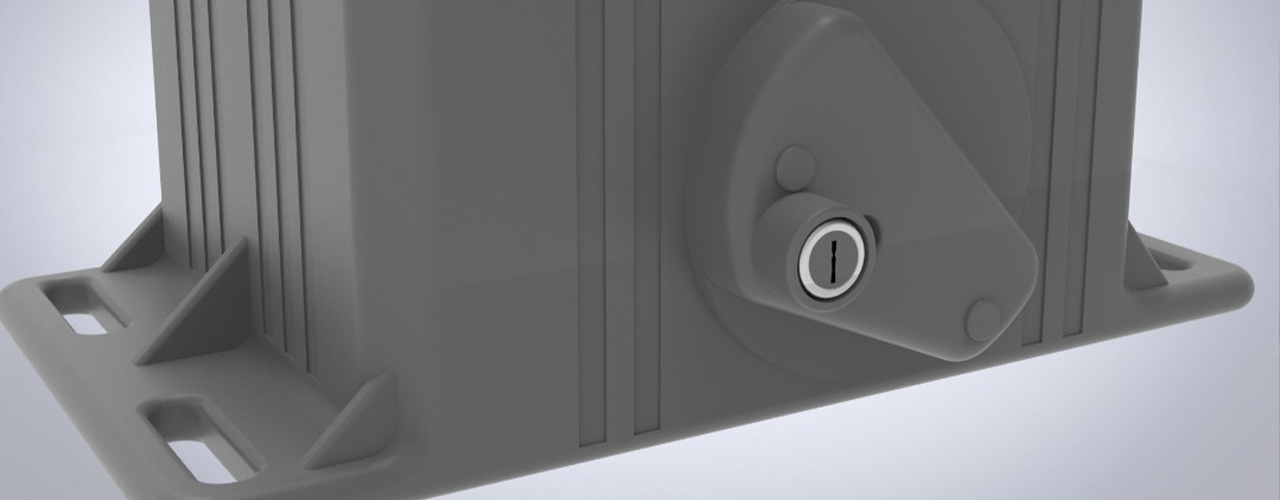

Brackets and installation are specially designed for easy position adjustment and motor release manually

Premium Quality

The combinations of ABS PVC and high-quality steel materials allows RDS 5 to maximize its sustainability of usage durability. Lifespan can be 8 years or more.

Eco Save

Designed with DC (direct current) automatic-based system, which saves up to 90% of your electricity usage

Easy Installation and Maintenance

Brackets and installation are specially designed for easy position adjustment and motor release manually

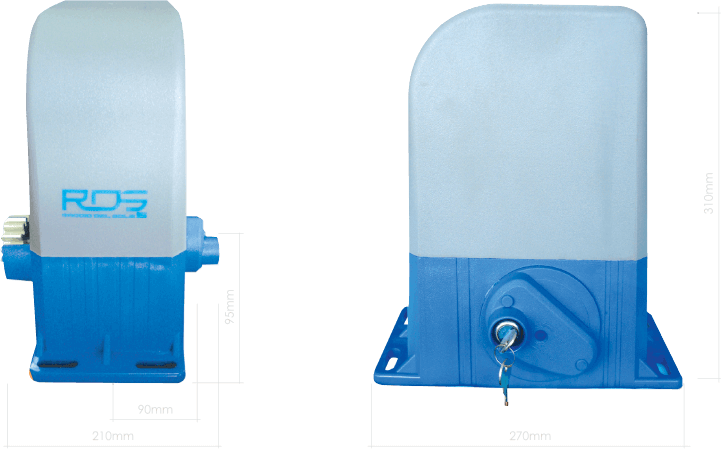

Specifications

Origin

Malaysia

Gate Leaf

Max : 20ft(± 6m)

Weight

8.7 kgs.max

Operating Voltage

24V DC for Normal Speed
12V DC for Cushioning Speed

Operating Ambient Temperature

-20°C to 55°C

Opening Speed

15m/min

Pinion

Z16 Module 4

Max Torque

13.5M

Electric Motor Speed

1800 RPM

Absorbed Current

120 W

Power Supply

AC 240V ± 10% (50/60Hz) 24V DC

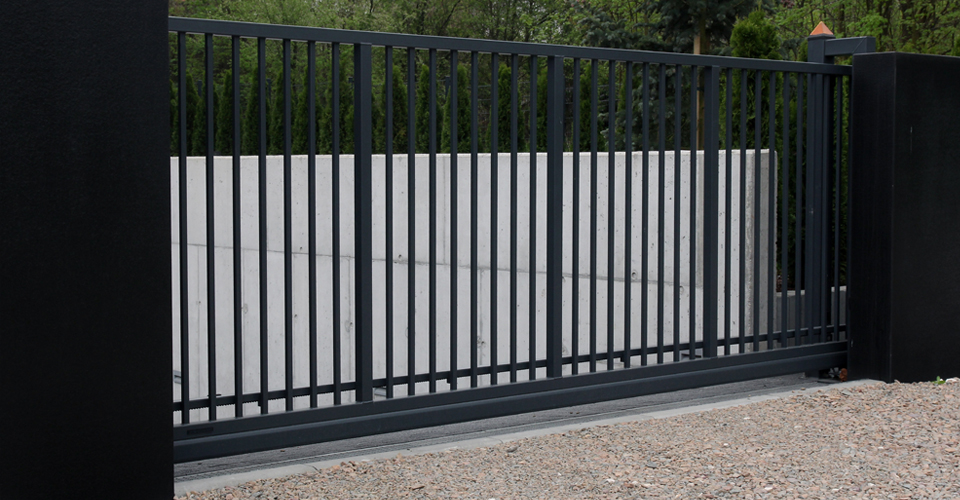

Gate Types

Originally made in Malaysia, our RDS-5 automatic sliding gate system has 1800rpm electric motor speed where it can be opened as fast as 15m per minute. It is also able to operate at ambient temperate ranging from -20°C to 55°C, suitable with our country’s weather.
