LI Gates

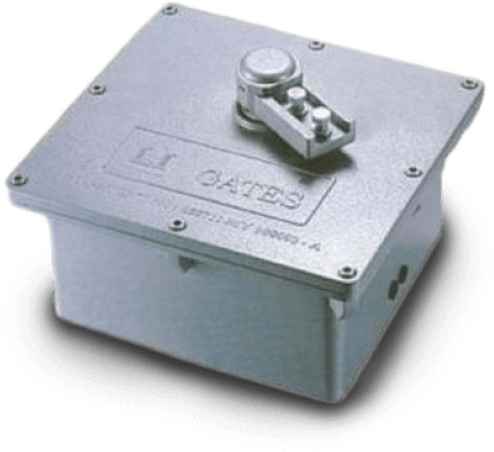

Underground Type Swing Auto Gate System

Unobtrusive and quietly operated, Li Gates Underground Type Swing Auto Gate System is made of solid stronghold motor and aluminium alloy that protects the motor from water, harsh weather and possible acid erosions. Underground autogate system is the perfect choice for those who are particular about the appearance of their homes as this system is discreetly hidden in the ground.

Solid Stronghold Motor

Solid and Long Lasting

With solid stronghold motor that we offer, the swing gate is built to last. Being made from solid material, it is reliable to keep intruders out of your home. Automating a gate is an operation that does not require a particular waste of time, in fact, it helps to improve the quality of life.

Aluminium Alloy Construction

Protects underground-concealed motor by being waterproof, weatherproof and free from acid erosion

Oil Bath Metal Gear

To protect and provide lubrication for clutches and gears.

Power Backup System

Optional power backup for your gate system should the main power cut off.

 Underground Auto Gate System - LI Gates

 Underground Auto Gate System - LI Gates

 Underground Auto Gate System

Unobtrusive Design

Unobtrusive design as the gate system functions while it is operated underground.

 Underground Auto Gate System

Quiet

As it is concealed underground, the noise from the motor is reduced.

Eco Save

Eco Save

Eco Save

Designed with DC (direct current) automatic-based system, which saves up to 90% of your electricity usage.

2 Speed Control Panel

2 Speed Control Panel

2 Speed Control Panel

Allowing 2 speed (Fast-Slow) for the gate and power leaking prevention (if the gate overheats, the control board will cut off power).

Built-In Safety Clutch

Built-In Safety Clutch

Built-In Safety Clutch

When the gate comes in contact with physical object ie. human while opening/closing, the gate will immediately stop moving.

Eco Save

Designed with DC (direct current) automatic-based system, which saves up to 90% of your electricity usage.

2 Speed Control Panel

Allowing 2 speed (Fast-Slow) for the gate and power leaking prevention (if the gate overheats, the control board will cut off power).

Built-In Safety Clutch

When the gate comes in contact with physical object ie. human while opening/closing, the gate will immediately stop moving.

Specifications

Controller

1+2 Remote

Rotary Speed

7 second per 90° C (approx)

Safety Clutch

Mechanical Clutch

Control Board

2-Speed

Transmission Type

Rotary level

Safety Beam

IR Safety Beam

Max. Output Power

120W per Motor

Speed

Dual Speed

Safety

Safety Limit Timer

Gate Weight

Max 300kg per leaf

Backup Battery

12V 7AH

Automatic Lightning Control

Including photo sensor control

DC motor

3 stage planetary gear

Remote Controller

2 channel UHF PWM

Operating

DC24v

Lock

Electric Lock

Gate Types

 Underground Type Swing Auto Gate System

The underground autogate system is the best option if you are looking for a fast and reliable automated gate system for your home. With our dual speed feature, the gate will open within a split second and you get to enter your compound as fast as possible. It also comes with a security lock so you can ensure that your house is totally safe once the gate is closed.
